ISO Tank CONTAINER



ISO Tank CONTAINER

A tank container or container is an intermodal container for transporting liquids, gases, and powders as bulk cargo. It is built to the ISO standards, making it suitable for different modes of transportation; it is also called an ISO tank. Both hazardous and non-hazardous products can be transported in tank containers.

T50 ISO tank container (for LPG and ammonia gas)
T75 ISO tank Container ( for Cryogenic liquids )

Cryogenic Liquid ISO Tank Container

Model10ft20ft40ft
Working Pressure8Bar/16Bar /24Bar
MediumLOX/LIN/LAR/LNG/LCo2
Insulation TypeHigh Vacuum Multilayer
StandardGB/ASME

DSW International also provides campers with side extenders, light truck chassis, and diesel truck cab application solutions to meet the different needs of users at home and abroad.

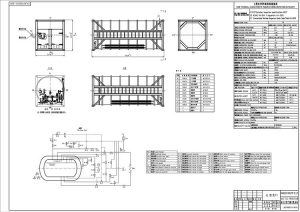

20m3 Cryogenic Liquid ISO Tank Container
iso tanker

1. ISO tankers technical spec

Model:1CC-TCS-20000/16                                     Insulation type: Multilayer
NOItemsInner vesselOuter vessel
1Design pressure     MPa1.6-0.1(outer)
2Working pressure    MPa1.6-0.1(outer)
3MAWP            MPa1.6/
4Design temperature    ℃-196-19~50
5Working temperature   ℃≥-196normal
6Pneumatic test      MPa1.6HLD
7G. Vol              m320.85.5(interlayer)
8E. Vol              m319.76/
9MediumLOX/LIN/LARMultilayer
10Main materialS30408Q345R
11TreatmentPickling and passivationSanding and coating
12Corrosion allowance  mm00
13Joint efficiency10.85
14Filling rate95%/
15Static evaporation   %/d≤0.22(by LOX), ≤0.35 (by LIN), ≤0.24 (by LAR),
16Seal off vacuum degree Pa≤1×102
17Leakage of vacuum interspace  Pam3/s≤1×106
18ISO code22T7
19Diameter         mmΦ2150Φ2400
20External Dimensions  mm6058×2438×2591
21typeHorizontal
22Tare weight           Kg~7890
23Fully loading weight    Kg~15986(LIN), ~27585(LAR), ~22546(LOX)
24Design service life15years
25Open pressure for safety valve1.89Mpa
26Sort
27Portable tank guidelineT75
